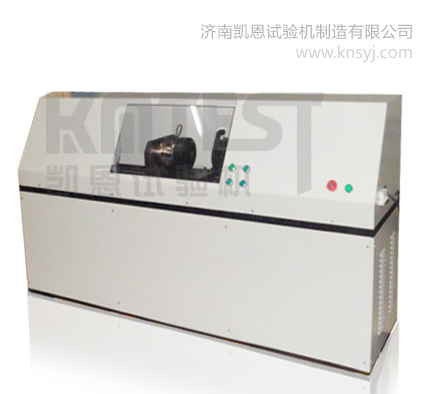

1000Nm/2000/5000 the torsion rig controlled by computer

一、扭轉試驗臺簡介
一、The simple introduce about torsion rig
該試驗臺主要用于扭轉原材料、半成品零部件、成品零部件的檢測。被測試試樣安裝在可調整空間的夾具之間,可適應不同的被測試試樣扭轉力學性能的試驗。試驗臺采用計算機控制操作,可進行扭矩、峰值、角度、曲線等數據的采集;顯示器顯示被測試零件的扭矩-時間,扭角-時間,扭矩-扭角和扭矩-轉角試驗曲線;可以實現試驗數據存儲、考取、打印試驗報表等。
The rig is mainly used for detecting the material of torsion, the parts of half-finished and finished products. The detected samples are installed between the fixtures which can adjust the test of torsion behavior of all kinds of detecting samples. The rig can collect data about torque, peak, angle and curve, which is operated by computer controlling. The screen displays the testing curve about detecting parts on torque-time, torque-tensional angle, torque- tensional angle. And it also can realize the testing data of preservation and the printing of testing chart.
二、主要技術參數:
The technological parameters:
1、樣式: 臥式
Pattern: horizontal
2、最大試驗力: 1000Nm/2000/5000Nm/100000Nm
Maximum force: 100 Nm/200Nm/500Nm
3、試驗力分辨率: 0.1Nm
The resolution of testing force: 0.01Nm
4、精確測量范圍: 1%FS-100%FS;
The range of accurate measurement: 1%FS-100%FS
5、試驗力精度; 優于±1%
Better than ±1%
6、角度分辨率: 0.01°
The resolution of angle:0.01°
7、角度測量精度: 優于±1%
Better than ±1%
9、試驗行程: 600mm
The testing stroke: 600mm
10、扭轉速度控制范圍: 1000Nm/2000Nm(0.1°720°/min)
5000Nm 10000Nm(0.1-360°/min)
Reverse speed control range: 1000Nm/2000Nm(0.1°720°/min)
5000Nm 10000Nm(0.1-360°/min)
11、扭轉速度控制精度: 優于±1%
Reverse speed control accuracy: Better than ±1%
12、試驗機級別: 1級
The level of torsion rig: superior quality
14、外觀: 應符合GB/T2611要求
Appearance: meet the GB/T2611 requirements
15、成套性: 符合標準要求
The complete set: meet the standards
16、保護功能: 試驗機有過載保護功能
The function of protection: over-protected
17、供電電源: 220V,50Hz
